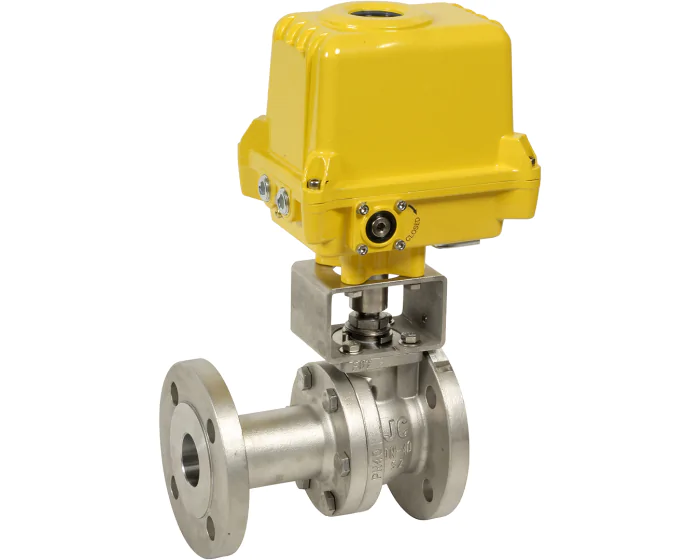

The 340 IIT ball valve is designed for the automatic opening and closing of unloaded industrial fluid lines up to a pressure of 40 bar. CE, ATEX, fire safety approved. Stainless steel valve. Electric actuator SA05X. 230
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN65 - 2''1/2 |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 290.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Power (W) | 25 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NAX 09 |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Ball valve design | 2-piece body |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|

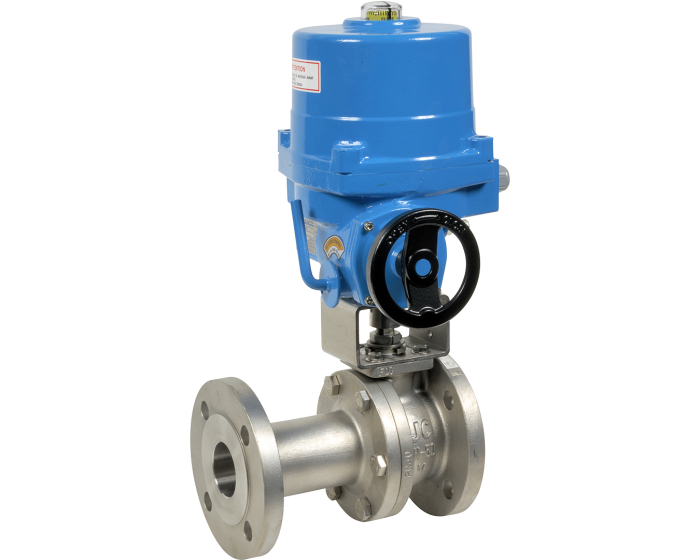

| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 NAX 09 | 316IIT065023330 | S1004408 |
€1,976.29
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' NAX 15 | 316IIT080023340 | S1004409 |
€2,670.97
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' NAX 28 | 316IIT100023360 | S1004410 |
€3,163.11
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' SA05-X | 340IIT015023310 | S1004413 |
€951.44
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' SA05-X | 340IIT020023310 | S1004414 |
€986.89
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' SA05-X | 340IIT025023310 | S1004415 |
€1,038.76
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 SA05-X | 340IIT032023310 | S1004416 |
€1,198.01
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 SA05-X | 340IIT040023310 | S1004417 |
€1,257.11
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' NAX 09 | 340IIT050023330 | S1004418 |
€1,824.07
(excl. btw)
|
add to cart |
